Highlight:
                                                                                                                                                                                                                                                Steel H beam Laser Cutting Machine, Steel Cutting H Beam Laser Cutter, H beam Laser Cutting Machine 12000W


Steel Cutting Range:	H≤500mm；W≤1200mm；L≤26000mm（ODM）	Laser Power:	12000W-20000W
X/Y/Z Maximum Positioning Speed:	30m/min	X/Y/Z Positional Accuracy:	≤0.1mm
Cutting Accuracy:	≤0.5mm	Plane Cutting Format:	L:26000mm；W：2500mm

Steel Cutting Range:	H≤500mm；W≤1200mm；L≤26000mm（ODM）
Laser Power:	12000W-20000W
X/Y/Z Maximum Positioning Speed:	30m/min
X/Y/Z Positional Accuracy:	≤0.1mm
Cutting Accuracy:	≤0.5mm
Plane Cutting Format:	L:26000mm；W：2500mm

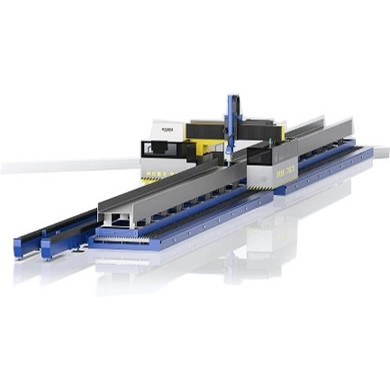

Steel Cutting H Beam Laser Cutting Machine 12000W-20000W Laser Power

H beam Laser Cutting Machine ; H-beam Laser Cutter

Product Description

The field of steel structure processing still uses traditional manual and semi-automatic blanking methods. There is an urgent need for an efficient and high-quality processing method to improve efficiency and quality and reduce labor costs. We are committed to providing high-efficiency, high-precision, and cost-effective automatic processing equipment to solve these problems by providing high-precision cutting and significantly reducing the amount of welding: high-precision cutting means that there is no need for excessive grinding, and parts assembly and welding can be easily realized , Eliminate the original backward methods with high labor costs, low efficiency, and cumbersome procedures. The unique three-dimensional six-axis five-link technology innovation developed for section steel processing helps users greatly improve production efficiency and product quality. If the user's output is saturated, the cost can be recovered in the same year.

Technical Parameters

serial number	name	Technical Parameters
1	Steel cutting range	Height B ≤ 450mm Width H ≤ 1000mm Length L≤ 26000mm (customized on demand)
2	Laser power	12kw/20kw/30kw
3	X-axis travel	26000mm
4	Y-axis travel	1750mm
5	Z axis travel	910mm
6	A-axis stroke (rotary axis)	±90°
7	C-axis stroke (rotary axis)	±90°
8	U axis travel (height adjustment axis)	0- 50mm
9	X/Y/Z maximum positioning speed	30m/min
10	X/Y/Z positioning accuracy	≤ 0.1 mm
11	Cutting accuracy	≤ 0.5 mm

Technological Design

H-shaped steel cutting, hole cutting, lettering, marking, and scribing can be done in one machine;

Possesses fine hole cutting technology;
supports various lap joint forms and groove cutting technology;

Support TEKLA steel structure 3D modeling data file cutting.

Application Range

Steel Structure; Chemical Machinery; Petroleum Engineering; Shipping

Steel Cutting H Beam Laser Cutting Machine 12000W-20000W Laser Power 0

Laser Welding Cleaning Cutting Head Upper Protective Lower Protective Double Protective Lens 18*2 20*2 30*2 43*2 44*2 with All Kinds of Series

Advantage

Why KEBEI LASER?
KEBEI LASER is at the forefront of laser cutting innovation, offering state-of-the-art H beam laser cutting machines that set new standards in quality and performance. Our commitment to excellence and continuous improvement ensures that we provide our customers with the most reliable and advanced technology available.

Whether it's enhancing production capabilities or optimizing operational efficiency, our solutions are designed to meet the dynamic challenges of the manufacturing and industrial sectors.

Company Introduction

WUHAN KEBEI international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Laser Welding Cleaning Cutting Head Upper Protective Lower Protective Double Protective Lens 18*2 20*2 30*2 43*2 44*2 with All Kinds of Series

Q: How can I choose the most suitable size?

A: In order to recommend you the most suitable size, please let us know the following detailes:

1.What machine is used for the laser consumables?

2.What is the power of the machine?

3.What is the size of consumables?

Q:When I got this product,but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.

Q: How long is the delivery time?
A: The laser product will be delivered to you within 1week after the order is confirmed.

Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
