Highlight:
                                                                                                                                                                                3d H Beam Laser Cutting Machine, H Beam Laser Cutting Machine 12000w, Steel Fiber Laser Cutting Machine 20000w


Name:	Structural Steel Fiber H Beam Laser Cutting Machine 3d 12000w 20000w	Type:	H Beam Laser Cutting Machine
Laser Power:	12000w 20000w	Cutting Method:	Laser

Name:	Structural Steel Fiber H Beam Laser Cutting Machine 3d 12000w 20000w
Type:	H Beam Laser Cutting Machine
Laser Power:	12000w 20000w
Cutting Method:	Laser

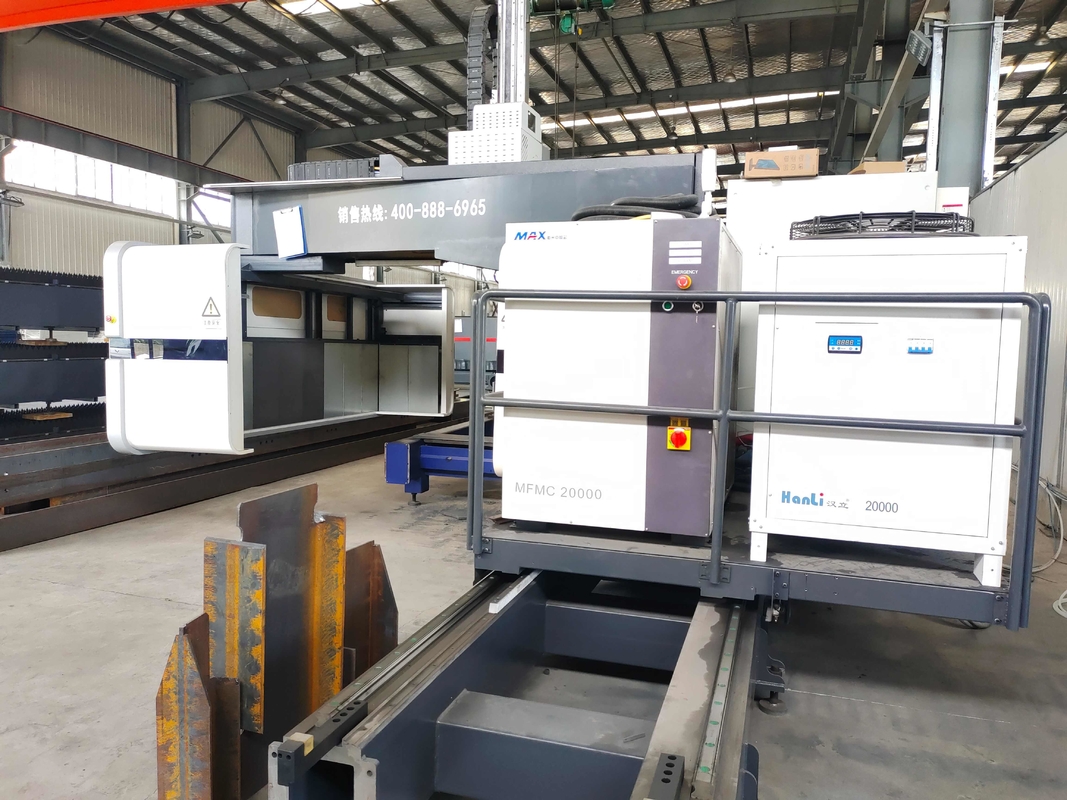

Structural Steel Fiber H Beam Laser Cutting Machine 3d 12000w 20000w

Product Description:

Professional Manufacturer H-Beam Structural Steel Fiber Laser Cutting Machine With 12000w 20000w; 3d Efficient Cutter

Purpose: The profile cutting robot module group includes a cutting unit , a roller frame , and a clamp mechanism, which are transported to the cutting position through each transmission roller table . Thermal cutting processing equipment for opening holes .

Length of the machine tool: the total length of the entire cutting unit is 20 000 mm, the feeding and conveying roller table is 125 00 mm, and the maximum cutting raw material is guaranteed to be 12 000 mm, and the feeding and conveying roller table is 6 000 mm .

Applicable workpiece materials: carbon structural steel, stainless steel.

Product Paramenters:

Steel profile size	100mm - 1000mm
Channel steel outline dimensions	100mm - 1000mm
Cutting method	laser
Laser power supply	DOWELL 300A
Laser cutting tube wall thickness	Perforation cut 1- 30 mm
Effective cutting	12 meters
Cutting length accuracy	±0.05mm
Robot control axis	X 1 and lower shaft: external pipe fitting axial horizontal feed shaft
	U- axis: the left and right moving axis of the Cutting head
	A axis: Cutting head rotation axis
	B axis: Cutting head deflection axis
	Y axis : front and rear axis of Cutting head
	Z axis: Cutting head lifting axis
Cutting speed	10～ 3 000mm/min
Moving speed	10～ 9000mm /min
The maximum weight of the pipe to be cut	1000Kg
Cut form of the part	Fixed-length straight cutting, fixed-length oblique cutting and end socket function.
Cutting accuracy implementation standard	ISO9013-2002ISO8206-1991JB /T10045.4-1999JB

Structural Steel Fiber H Beam Laser Cutting Machine 3d 12000w 20000w 0

Laser Welding Cleaning Cutting Head Upper Protective Lower Protective Double Protective Lens 18*2 20*2 30*2 43*2 44*2 with All Kinds of Series

Advantage

Why KEBEI LASER?
KEBEI LASER is at the forefront of laser cutting innovation, offering state-of-the-art H beam laser cutting machines that set new standards in quality and performance. Our commitment to excellence and continuous improvement ensures that we provide our customers with the most reliable and advanced technology available.

Whether it's enhancing production capabilities or optimizing operational efficiency, our solutions are designed to meet the dynamic challenges of the manufacturing and industrial sectors.

Company Introduction

WUHAN KEBEI international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Laser Welding Cleaning Cutting Head Upper Protective Lower Protective Double Protective Lens 18*2 20*2 30*2 43*2 44*2 with All Kinds of Series

Q: How can I choose the most suitable size?

A: In order to recommend you the most suitable size, please let us know the following detailes:

1.What machine is used for the laser consumables?

2.What is the power of the machine?

3.What is the size of consumables?

Q:When I got this product,but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.

Q: How long is the delivery time?
A: The laser product will be delivered to you within 1week after the order is confirmed.

Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
