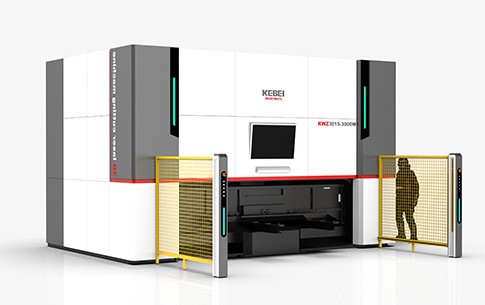

Name: 3D Five-axis Laser Cutting Machine KWZ3015 with Floating Axis Range ±12.5mm
Brand: KEBEI LASER
SKU: KWZ3015
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Kebei

Certification: IOS; CE

Model Number: KWZ3015

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: USD 3-7 Unit

Delivery Time: 45 Days

Payment Terms: T/T

Supply Ability: 8 units per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3D Five-axis Laser Cutting Machine, Five-axis Laser Cutting Machine, 3D Laser Cutting Machine


X/Y/Z Axis Range:	3000/1500/680mm	A Axis Range:	±135°
C Axis Range:	±360°	X/Y/Z Maximum Spped:	100m/min
A/C Maximum Acceleration:	200rad/s²	A/C Maximum Speed:	90r/min
X/Y/Z Maximum Acceleration:	0.8g	X/Y/Z Axis Positioning Accuracy:	±0.05mm
X/Y/Z Axis Repeated Positioning Accuracy:	0.03mm	A/C Axis Positioning Accuracy:	±0.03°
A/C Axis Repeated Positioning Accuracy:	0.02°	Floating Axis Range:	±12.5mm
Model:	Gantry Laser	Cooling Mode:	Water Cooling
Laser Type:	Fiber Laser	Software:	LaserCut
Cutting Thickness:	Up To 25mm	Power Supply:	AC380V, 50/60Hz
Method Of The Workbench:	Fixed/Rotating/Moving	Laser Power:	1000-6000W

X/Y/Z Axis Range:	3000/1500/680mm
A Axis Range:	±135°
C Axis Range:	±360°
X/Y/Z Maximum Spped:	100m/min
A/C Maximum Acceleration:	200rad/s²
A/C Maximum Speed:	90r/min
X/Y/Z Maximum Acceleration:	0.8g
X/Y/Z Axis Positioning Accuracy:	±0.05mm
X/Y/Z Axis Repeated Positioning Accuracy:	0.03mm
A/C Axis Positioning Accuracy:	±0.03°
A/C Axis Repeated Positioning Accuracy:	0.02°
Floating Axis Range:	±12.5mm
Model:	Gantry Laser
Cooling Mode:	Water Cooling
Laser Type:	Fiber Laser
Software:	LaserCut
Cutting Thickness:	Up To 25mm
Power Supply:	AC380V, 50/60Hz
Method Of The Workbench:	Fixed/Rotating/Moving
Laser Power:	1000-6000W
