Name: Cantilevel Laser Cutting Machine 6 Axis 3D For Steel
Brand: KEBEI LASER
SKU: KHX26015
Price: 122500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Kebei

Model Number: KHX26015

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 8unitspermonth

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Cantilevel Laser Cutting Machine, 6 Axis Cantilevel Laser Cutting Machine, 3D Cantilevel Laser Cutting Machine


Laser Power:	12000w-20000w	X-axis Range:	26000mm
Y-axis Range:	1550mm	Z-axis Range:	1040mm
X/Y/Z Positioning Accuracy:	<0.1mm	A-axis Range(rotary Axis):	+90 Degree

Laser Power:	12000w-20000w
X-axis Range:	26000mm
Y-axis Range:	1550mm
Z-axis Range:	1040mm
X/Y/Z Positioning Accuracy:	<0.1mm
A-axis Range(rotary Axis):	+90 Degree

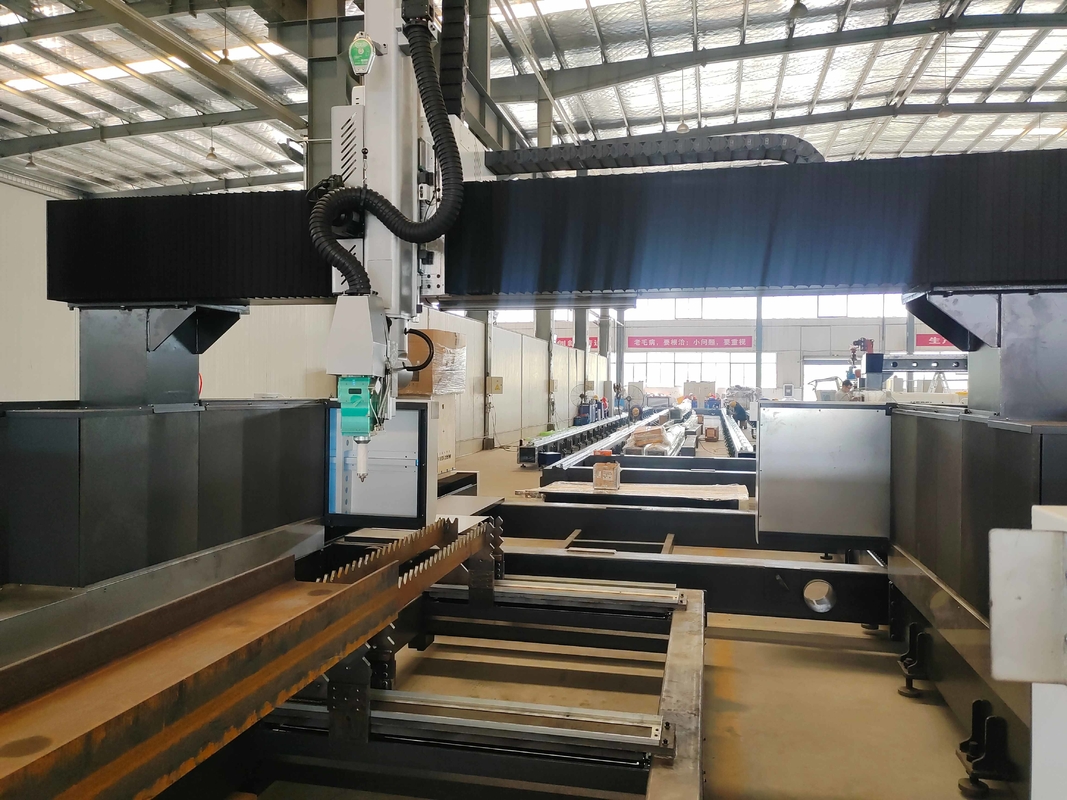

Cantilevel Laser Cutting Machine 6 Axis 3D For Steel

Cantilevel Laser Cutting Machine For Structrual Steel H Beam Steel Cut The Stainless Steel
Cantilever laser cutting machine Products discription

H-beam laser cutting machine is the main product of a three-dimensional cutting series. One machine can cut, engrave, mark, draw, and support tekla steel structure three-dimensional modeling data text cutting, support various lap forms of bevel cutting process, a advanced with fine hole cutting process.That is what unique products in Chinese market and the working table is hang on the workplace, so it is different from other machines.Section steel laser secondary processing line is a high-tech product integrating laser cutting, precision machinery, intelligent detection and three-dimensional five-axis numerical control technology. Nowadays, the steel structure processing field still uses the traditional manual and semi-automatic feeding method, and there is an urgent need for an efficient and high-quality processing method to improve the efficiency and quality and reduce the labor cost.

Model features
a. Uniquely developed three-dimensional six-axis technology brings ultra-high efficiency.
b. Equipped with cntering device to effectively contol the accuracy .
c. Savingtime on loading and unloading by using double-station structure.
d. Supports contour detection, effectively avoiding dimensional errors.
e. Ultra-fast responses led by high-precision floating shaft design.
f. 15 times of efficiency comparing to manual processing.
g. Stable and safe structural design with continuous 24 hours of operation.

Advantage
a. cut off, cut holes, beveling, open over-welded holes (Lingkong clear root cutting), scribing, spray code six major
function of a key to generate, one step.
b. H-beam, channel, angle three-in-one cutting.
c. A variety of welding nodes, a key cut, batch intelligent application.

serial number	name	Technical Parameters
1	Steel cutting range	Height B ≤ 450mm Width H ≤ 1000mm Length L≤ 26000mm (customized on demand)
2	Laser power	12kw/20kw/30kw
3	X-axis travel	26000mm
4	Y-axis travel	1750mm
5	Z axis travel	910mm
6	A-axis stroke (rotary axis)	±90°
7	C-axis stroke (rotary axis)	±90°
8	U axis travel (height adjustment axis)	0- 50mm
9	X/Y/Z maximum positioning speed	30m/min
10	X/Y/Z positioning accuracy	≤ 0.1 mm
11	Cutting accuracy	≤ 0.5 mm

Factory Supply H-Beam Laser Cutting Fiber Construction and Metal Machine Make Marking and Holes Metal Construction

Company introduction

Wuhan kebei international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel. Factory Supply H-Beam Laser Cutting Fiber Construction and Metal Machine Make Marking and Holes Metal Construction .
KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Company team

Cantilevel Laser Cutting Machine 6 Axis 3D For Steel 2

Factory Supply H-Beam Laser Cutting Fiber Construction and Metal Machine Make Marking and Holes Metal Construction

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q: What factors should be considered when choosing a laser cutting machine?
A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?
A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
