12kW Fiber Laser Tube Cutting Machine
, Swing Head Laser Tube Cutting Machine
, Three Chuck Tube Cutting Machine 3kW

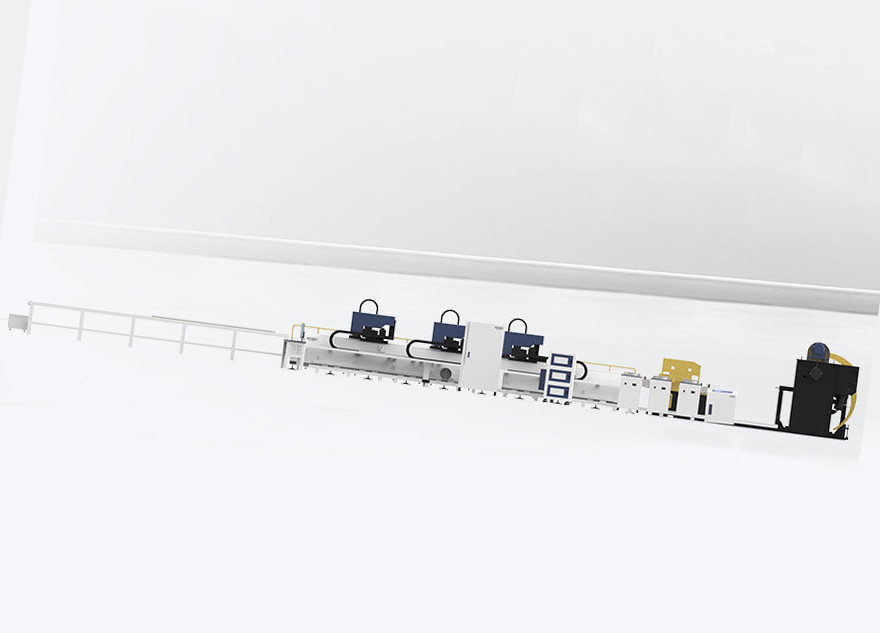

Fiber Laser Three Chuck Tube Cutting Machine 3-12kW With Swing Head
Three Chucks Design 3-12kW Fiber Laser Tube Cutting Machine With Swing Head
Products discription
Three chuck tube cutting machine is standard three-chuck pipe cutting machine with stable and reliable pneumatic chuck structure, three floating supports installed in the machine, intelligent control of support lifting and sheet loading. When cutting, the pipe support can be kept placed in real time, thus avoiding the unstable cutting quality caused by the inertia flinging of the pipe due to high-speed rotation.
Aviation aluminum gantry
● Aerospace grade aluminum light quality
● High speed, good dynamic response,fast acceleration
● Beam as a whole by the finite element analysis optimization of high rigidity Lightweight design, durable
Heavy duty machine frame
● To optimize the design of the sectional welding lathe bed Lathe bed in the middle of reinforcing bar
● Improves the lathe bed stability
● Prevent deformation of lathe bed
Product application
Round tube diameter range 50-450mm (change according to the size of the chuck), can support multiple tube type cutting, channel,
angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard
semi-automatic loading, more efficient, convenient and stable
Machine features
1. Fast speed: 130m/min, two driver, synchronous high speed move
2. Leapfrog cutting: Improve the cutting speed, processing efficiency and accuracy
3. Scan cutting: Short distance cutting without head lifting
4. Automatic search edge function: If metal sheet put slanting, machine can auto detect, and auto adjust cutting, less waste and no need to replace material
5. Power off cutting memory: When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point
6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save much time.
Product Parameters
|
|
|
|
|
|
X/Y-axis Positioning Accuracy
|
|
X/Y-axis Repositioning Accuracy
|
|
|
|
|
|
|
|
|
|
|
Cutting Capacity of Round Tube
|
|
Cutting Capacity of Square tube
|
|
|
|
|
|
|
|
|
|
|
Overall Dimensions (L*W*H)
|
|
Sample display
Wuhan kebei international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.
.
KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.
Certifications
Exhibition Pics
FAQ
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q: What factors should be considered when choosing a laser cutting machine?
A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?
A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
