Highlight:
                                                                                                                                                                                                                                                Fiber Collimating Focus Lens, D30mm Focus Lens, Laser Cutting Machine Focus Lens


Application:	Laser Cutting Machine	Functionality:	High Performance
Material:	Metal	Durability:	Long-lasting
Type:	Replacement Parts	Size:	Standard

Application:	Laser Cutting Machine
Functionality:	High Performance
Material:	Metal
Durability:	Long-lasting
Type:	Replacement Parts
Size:	Standard

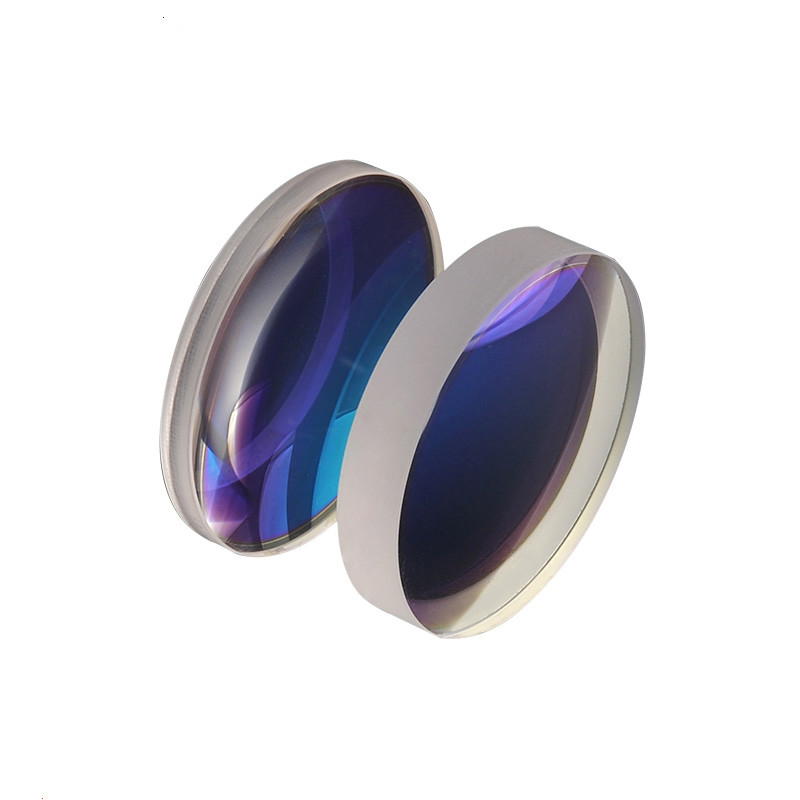

D30mm FL100 FL125 Fiber Collimating Focus Lens For Laser Cutting Machine

D30mm FL100 FL125 Fiber Collimating Focus Lens For Laser Cutting Machine Protective Heads

Focus lens

A comultrator is an optical component, usually made of convex lenses, concave mirrors or standard mirrors.Based on the principle of mirror reflection, it ensures that the direction of the incident light and the reflected light is exactly consistent by making the light perpendicular to the

mirror.

Basic Info.

Brand: Raytools
Model: BT210,BT240/BT240S,BM109,BM110,BM111,BM112,BM114,BM115,BM06K,BS06K

Diameter: 28/30/37/38.1mm
Focal Length: 100/125/150/155/200mm

Applicable Power: 0-4KW,0-8KW.

Material	Fused Quartz/JGS1/7980
Dimension tolerance	±0.1mm
Clear aperture	>90%
Surface quality	40/20 or better
Surface accuracy	lambda/4@635nm
Parallelism	<20"
Coating	AR1064
Transmittance	>99.8%
Laser Endurance	6kw-20kw

Type	Material	Diameter	Focal length	Wavelength
Single piece	Silica JGS1	D20	F40	AR1064nm
Single piece	Silica JGS1	D20	F50	AR1064nm
Single piece	Silica JGS1	D20	F60	AR1064nm
Single piece	Silica JGS1	D20	F80	AR1064nm
Single piece	Silica JGS1	D20	F100	AR1064nm
Single piece	Silica JGS1	D20	F120	AR1064nm
Single piece	Silica JGS1	D20	F150	AR1064nm
Single piece	Silica JGS1	D20	F180	AR1064nm
Single piece	Silica JGS2	D20	F40	AR1064nm
Single piece	Silica JGS2	D30	F40	AR1064nm
Single piece	Silica JGS2	D36	F80	AR1064nm
Single piece	Silica JGS2	D36	F100	AR1064nm
Single piece	Silica JGS2	D36	F120	AR1064nm
Single piece	Silica JGS2	D36	F200	AR1064nm
Single piece	Silica 7980	D30	F150	AR1064nm
Single piece	Silica 7980	D30	F200	AR1064nm
Single piece	Silica 7980	D30	F250	AR1064nm
Single piece	Silica JGS2	D50	F150	AR1064nm
Single piece	Silica JGS2	D50	F200	AR1064nm
Double pieces	Silica JGS2	D30	F75	AR1064nm
Double pieces	Silica JGS2	D30	F100	AR1064nm
Double pieces	Silica JGS2	D30	F125	AR1064nm
Double pieces	Silica JGS2	D30	F180	AR1064nm
Double pieces	Silica 7980	D30	F100	AR1064nm
Double pieces	Silica 7980	D30	F125	AR1064nm
Double pieces	Silica 7980	D30	F150	AR1064nm
Double pieces	Silica 7980	D30	F200	AR1064nm
Double pieces	Silica 7980	D36	F100	AR1064nm
Double pieces	Silica 7980	D36	F120	AR1064nm
Double pieces	Silica JGS2	D50	F120	AR1064nm

Product Service System

Our products cover laser protection parts, including lenses, laser cutting nozzle,

ceramic ring etc.

If you are interested in our products and service, please do not hesitate to contact us.

Exhibition Pics

Original Raytools Fiber Laser Focus Collimating Lens for Wsx Precitec Raytools Laser Cutting Head with Good Quality

WUHAN KEBEI international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel. KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Original Raytools Fiber Laser Focus Collimating Lens for Wsx Precitec Raytools Laser Cutting Head with Good Quality

Q: How can I choose the most suitable size?

A: In order to recommend you the most suitable size, please let us know the following detailes:

1.What machine is used for the laser consumables?

2.What is the power of the machine?

3.What is the size of consumables?

Q:When I got this product,but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.

Q: How long is the delivery time?
A: The laser product will be delivered to you within 1week after the order is confirmed.

Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
