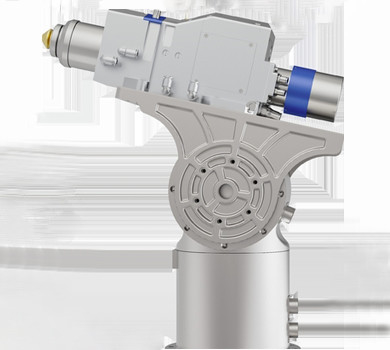

Name: Auto Focus Bm110 Fiber Laser Head 3Kw For Metal Cutting Machine
Brand: KEBEI LASER
SKU: bm110
Price: 1,501.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: kebei

Model Number: bm110

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 8unitspermonth

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Raytools Bm110 Fiber Laser Head, Fiber Laser Head 3Kw, Metal Cutting Machine Fiber Laser Head


A-axis Swing Angle:	±45°	A-axis Maximum Speed:	37.5r/min
B-axis Maximum Speed:	37.5r/min	Positioning Accuracy:	±0.03mm
Allowable Weight:	10kg	Repeated Positioning Accuracy:	±0.02mm

A-axis Swing Angle:	±45°
A-axis Maximum Speed:	37.5r/min
B-axis Maximum Speed:	37.5r/min
Positioning Accuracy:	±0.03mm
Allowable Weight:	10kg
Repeated Positioning Accuracy:	±0.02mm

Auto Focus Bm110 Fiber Laser Head 3Kw For Metal Cutting Machine

Auto Focus Raytoolsbm110 Fiber Laser Head 3 Kw Laser Cutting Head For Metal Cutting Machine

The Raytools BM110 cutting head is a high-performance component used in laser cutting systems. Optical Design: The BM110 cutting head is equipped with high-quality optics designed to focus and deliver the laser beam precisely onto the workpiece. These optics ensure consistent cutting quality and efficiency across various materials and thicknesses.

Support Interface

Great compatibility and versatility.

Support mainstream laser processing systems such as Beckhoff, Bochu, Empower, NCStudio and etc.

Support laser cutting system from most of the laser companies.

Function

1. Excellent Design

Optimized optical configuration and smooth and efficient air flow design significantly improve cutting quality and efficiency

2. Auto Focusing

Automatic focusing, reducing human intervention, automatic focusing range -12~+10mm,adjustment accuracy 0.05mm.

3. Multiple Cover Glass Protection

Collimation adds a protective lens to effectively protect the collimating lens.

4. Drawer Lense Assembly

Fast and simple replacement of protective lenses.

5. High Adaptability

With QBH, QD and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.

Features

1. Optimized optical configuration, smooth and fficient airflow design.

2. Comprehensive upgrade of the dust -proof design, double protection and nocontamination of the lens.

3. The laser head body is increased anti-collision functian.

4. Turntable focus adjustment, manually corrected, flexible adjustment Adjustablerange is 20mm(t0.05mm).

5. A variety of optical interfaces, suitable for many kinds of fiber lasers.

serial number	project	skills requirement
1	A axis swing angle	±45°
2	B-axis swing angle	±45°
3	A axis maximum speed	37.5r/min
4	B axis maximum speed	37.5r/min
6	positioning accuracy	±0.03mm
7	Repeated positioning accuracy	±0.02mm
8	Rotar elevation axis total weight	12.3KG
9	Allowable load	10KG

K-Ab Bevel Swivel Rotary Series with Thick Plates Beveling and Processed Work Piece Countersinking

WUHAN KEBEI international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

K-Ab Bevel Swivel Rotary Series with Thick Plates Beveling and Processed Work Piece Countersinking

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Q: What factors should be considered when choosing a laser cutting machine?

A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?

A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
