Name: Exchange Platform Sheet Metal Laser Cutting Machines 3000W-30000W
Brand: KEBEI LASER
SKU: basic model
Price: 43,001.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: kebei

Model Number: basic model

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 8unitspermonth

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Sheet Metal Laser Cutting Machines 3000, Exchange Platform Laser Cutting Machines, Sheet Metal Laser Cutting Machines 30000W


Processing Width:	3000mm*1500mm	X-axis Range:	1500mm
Y-axis Range:	3000mm	Z-axis Range:	300mm
X/Y Maximum Speed:	120m/min	Total Power Supply Protection Level:	IP54

Processing Width:	3000mm*1500mm
X-axis Range:	1500mm
Y-axis Range:	3000mm
Z-axis Range:	300mm
X/Y Maximum Speed:	120m/min
Total Power Supply Protection Level:	IP54

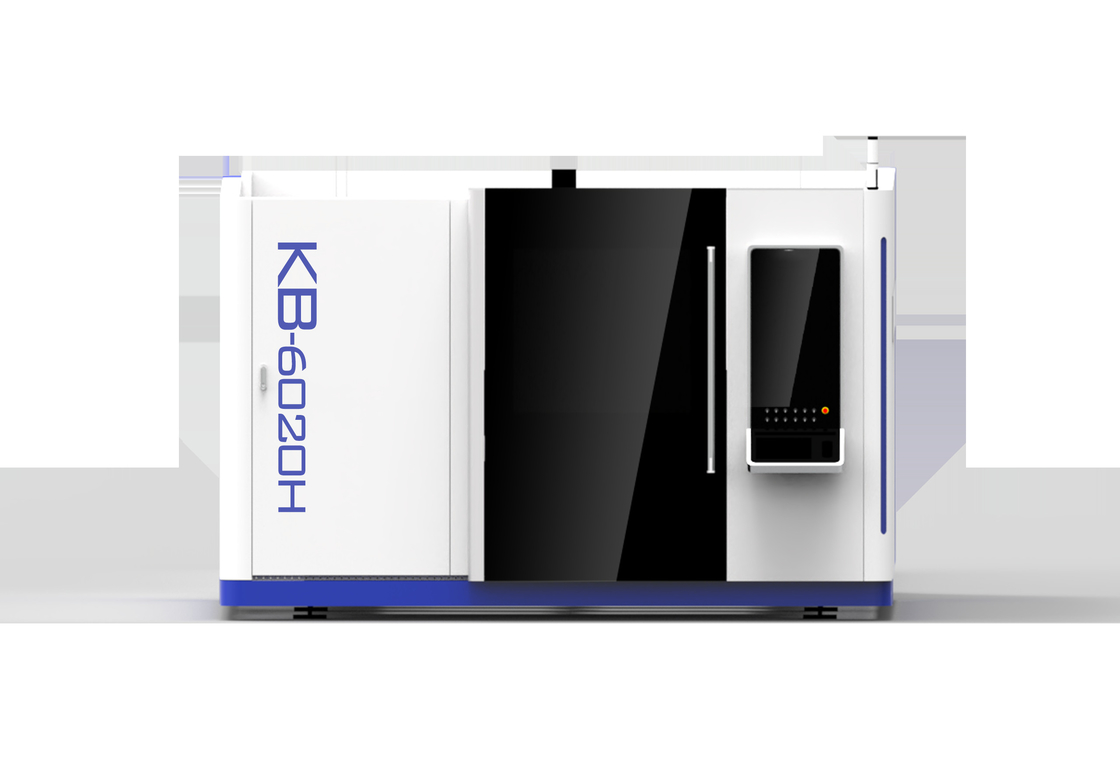

Exchange Platform Sheet Metal Laser Cutting Machines 3000W-30000W

Sheet Metal Laser Equipment Exchange Platform Laser Cutter 3000W-30000W
Exchange table laser cutting machine

Exchange table laser cutting machine

This product is our company's advanced fiber laser cutting machine, with extremely high cutting precision and impressive cutting effect. High-speed, high-quality cutting makes this equipment a firm foothold in the market, and the equipment is in a leading position in the world.

Applicable materials

Specialize for cutting 0.5- 40mm carbon steel plate, 0.5-70mm stainless steel plate,0.5-25mm aluminum plate, 0.5-20mm brass, 0.5-8mm copper, galvanized plate,electrolytic plate and silicon steel.

Features:

1)Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.

2) Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.

3) Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.

4) Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.

5) Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.

Fiber Laser Cutting Machine for High Power Fiber Laser Cutting Stainless Steel Carbon Steel Copper Aluminum

Export type top design, high torque integrated direct drive system Easy vertical cutting and bevel cutting Since the market, with super performance and excellent processing performance Especially in intelligent operation, high precision speed cutting Stability and other advantages are more obvious Harvest industry users great response and good reputation And widely used in domestic and international shipbuilding engineering machinery, oil pipeline and other fields of many large project construction It has become an important tool in metal processing industry and enjoys a worldwide reputation.

Machine Body (Plate welding withstiffener inside,not square pipe weld frame)

Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That’s why top brand machines body all are plate welding design.

Metal material

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel,aluminum-plating zinc plate, copper, and other metals.

Application Industry

Fiber laser cutting machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

serial number	Attributes	KB-3015H	KB-4020H	KB-6020H	KB-8025H
1	Processing format (length*width)	3000mm*1500mm	4000mm*2000mm	6000mm*2000mm	8000mm*2500mm
2	X-axis travel	1500mm	2000mm	2000mm	2500mm
3	Y-axis travel	3000mm	4000mm	6000mm	8000mm
4	Z axis travel	300mm	300mm	300mm	300mm
5	X/Y axis positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
6	X/Y axis repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
7	XY maximum speed	120m/min	120m/min	120m/min	120m/min
8	number of phases	3	3	3	3
9	Power Specifications	3/380V/50HZ	3/380V/50HZ	3/380V/50HZ	3/380V/50HZ
10	Total power protection level	IP54	IP54	IP54	IP54

The straight cutting effect of the thin plate can reach the quality of the plane machine

Maximum ±45 degree bevel, can be cut with gradient bevel Can meet various types of groove requirements

Company introduction

WUHAN KEBEI Laser international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Laser Surface Processing Machine with High Speed and High Precision Fiber Cutter

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Q: What factors should be considered when choosing a laser cutting machine?

A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?

A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
