Highlight:
CNC Fiber Laser Cutting Machine
, Fiber Laser Cutting Machine 2000W
, Metal Fiber Laser Cutting Machine

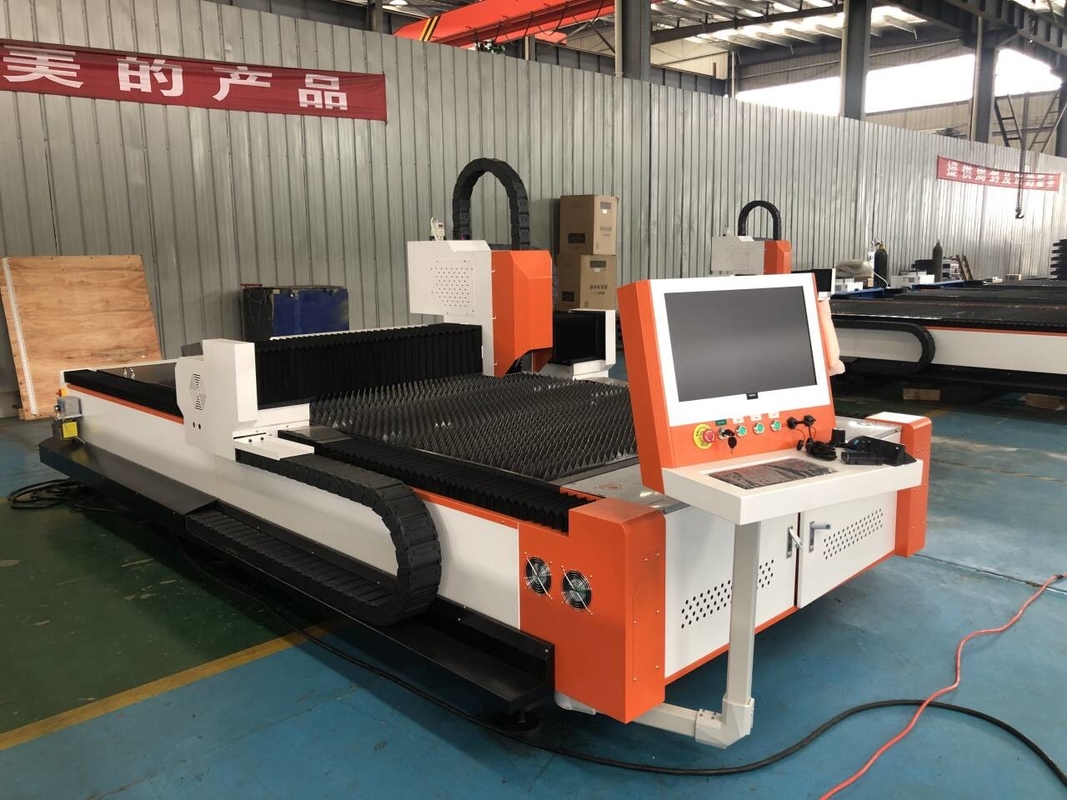

CNC Fiber Laser Cutting Machine 1000W 2000W for Stainless Steel Metal Cutting
CNC Fiber Laser Cutting Machine Stainless SteelMetal Cutting Machine 1000W 2000W
Single table lser cutting machine
Single table laser cutting machine is a major plate cutting series product but it can also cut slope.
Features:
1, high rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.
2, Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;
3, fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.
4, Adopts imported original guiding drive and servo motor, high precision, high speed;
5, Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.
6, Beautiful, smooth cutting edge,without deformation;
7, low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;
8, without working gas lasers, air available for sheet cutting ;
9, fast cutting speed, low operation cost,investment recovery quickly
Application materials
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials
Advantage
Industrial heavy duty bed
High-quality steel plates are welded, independently welded, polished, heat treated, painted, and the quality is strictly controlled. Long service life and no deformation.
Max Laser Source
Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Raytools Laser Head
We can provide all high quality laser heads on the market. It's been tested by us for a long time. Fuji/Yaskawa all of our long-term partners.
Fuji Servo Motor and Driver
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time. It guarantees the working stability and accuracy.
Product Parameters
| serial number |
Attributes |
KB-3015D |
KB-4020D |
KB-6020D |
KB-12025D |
| 1 |
Processing format (length*width) |
3000mm*1500mm |
4000mm*2000mm |
6000mm*2000mm |
12000mm*2500mm |
| 2 |
X-axis travel |
1500mm |
2000mm |
2000mm |
2500mm |
| 3 |
Y-axis travel |
3000mm |
4000mm |
6000mm |
12000mm |
| 4 |
Z axis travel |
150mm |
150mm |
150mm |
150mm |
| 5 |
X/Y axis positioning accuracy |
±0.03mm/m |
±0.03mm/m |
±0.03mm/m |
±0.03mm/m |
| 6 |
X/Y axis repeat positioning accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
| 7 |
XY maximum speed |
120m/min |
120m/min |
120m/min |
120m/min |
| 8 |
Phase |
3 |
3 |
3 |
3 |
| 9 |
Power Specifications |
3/380V/50HZ |
3/380V/50HZ |
3/380V/50HZ |
3/380V/50HZ |
| 10 |
Total power protection level |
IP54 |
IP54 |
IP54 |
IP54 |
Sample display
Certifications
Exhibition Pics
Company introduction
WUHAN KEBEI international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.
FAQ
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q: What factors should be considered when choosing a laser cutting machine?
A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?
A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
