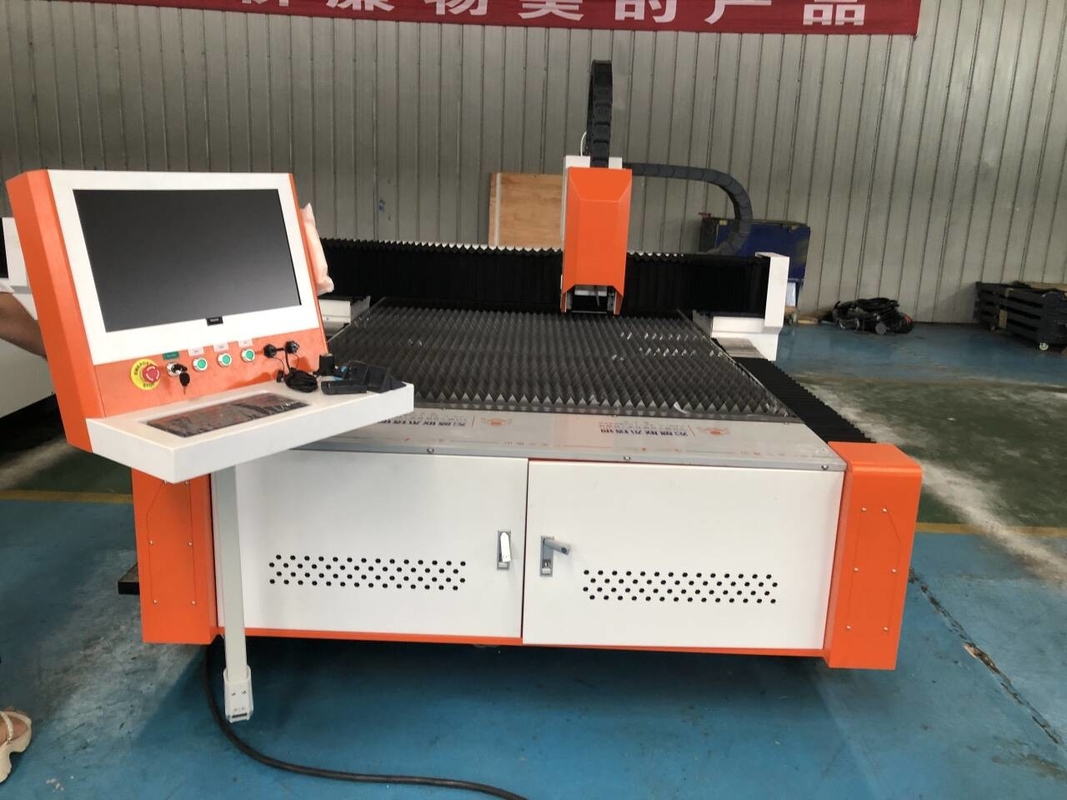

Name: Raycus Raytools Cypcut Sheet Metal Laser Cutting Machine Enclosed 3KW
Brand: KEBEI LASER
SKU: basic model
Price: 43,001.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: kebei

Model Number: basic model

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Delivery Time: 45 days

Payment Terms: T/T

Supply Ability: 8unitspermonth

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                3KW Sheet Metal Laser Cutting Machine, Cypcut Sheet Metal Laser Cutting Machine, Raycus Sheet Metal Laser Cutting Machine


Processing Width:

3000mm*1500mm

Name:

3000W Metal Sheet Laser Cutting Machine Industrial Enclosed Double Table Model Raycus Raytools Cypcut

Processing Width:	3000mm*1500mm
Name:	3000W Metal Sheet Laser Cutting Machine Industrial Enclosed Double Table Model Raycus Raytools Cypcut

Raycus Raytools Cypcut Sheet Metal Laser Cutting Machine Enclosed 3KW

3000W Metal Sheet Laser Cutting Machine Industrial Enclosed Double Table Model Raycus Raytools Cypcut
Exchange table laser cutting machine

Exchange table laser cutting machine has fully enclosed external optical path system, combined with a special mode of laser, gathers high-energy pulse laser on the surface of the cleaning object, uses the principles of plasma blasting, high-energy pulse excitation vaporization, and complex photochemical reactions, and realizes cleaning by controlling the effective displacement of the laser beam.

Applicable materials

Specialize for cutting 0.5- 40mm carbon steel plate, 0.5-70mm stainless steel plate,0.5-25mm aluminum plate, 0.5-20mm brass, 0.5-8mm copper, galvanized plate,electrolytic plate and silicon steel.

Features:

1)Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.

2) Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.

3) Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.

4) Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.

5) Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.

Product advantage

Fully protected and enclosed design, environmentally friendly

The whole machine is fully protected and closed design, safe and environmentally friendly, no pollution, in line with ergonomics and international standards.

The newly designed exchange worktable, higher processing efficiency

The newly designed parallel exchange locking system has a simple and reliable structure, which makes the

processing efficiency high and the stability is good. The dual platform can further improve the production

efficiency.

Aviation-grade extruded aluminum gantry

It adopts a gantry structure, a lightweight design, uses aerospace-grade extruded aluminum, and is finished

after artificial aging and solution treatment. The gantry has excellent rigidity, surface quality, and integrity.

It also has excellent dynamic performance and is conducive to high speed cutting.

Product Details

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

CUTTING HEAD

The cutting head can make the spot energy higher in industrial processing and improve processing efficiency. And according to the actual processing scene, the laser spot shape and processing depth can be adjusted when emitting light.

CONTROL SYSTEM

With the support of the laser cutting system, customers can improve cutting accuracy and work efficiency; automatic type setting saves materials and reduces production costs; the advantages are low maintenance costs and high cost performance.

INDUSTRIAL COMPUTER

It is loaded with CypNest flat nesting software, which is a set of nesting software for CypCut planar laser cutting CNC system. It is developed for CypCut laser cutting software, which can realize drawing processing, fast nesting, tool path generation and remote Push processing and other functions.

serial number	Attributes	KB-3015H	KB-4020H	KB-6020H	KB-8025H
1	Processing format (length*width)	3000mm*1500mm	4000mm*2000mm	6000mm*2000mm	8000mm*2500mm
2	X-axis travel	1500mm	2000mm	2000mm	2500mm
3	Y-axis travel	3000mm	4000mm	6000mm	8000mm
4	Z axis travel	300mm	300mm	300mm	300mm
5	X/Y axis positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
6	X/Y axis repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
7	XY maximum speed	120m/min	120m/min	120m/min	120m/min
8	number of phases	3	3	3	3
9	Power Specifications	3/380V/50HZ	3/380V/50HZ	3/380V/50HZ	3/380V/50HZ
10	Total power protection level	IP54	IP54	IP54	IP54

Laser Surface Processing Machine with High Speed and High Precision Fiber Cutter

WUHAN KEBEI Laser international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

Laser Surface Processing Machine with High Speed and High Precision Fiber Cutter

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Q: What factors should be considered when choosing a laser cutting machine?

A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
Q: Is the laser cutting machine safe to use?

A: Laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.Our production are examined by a series of tests , we can ensure the quality of using.
